The EBS modulator is one of the key components of a commercial vehicle's electronic braking system. A faulty unit may cause EBS warning messages, braking system faults and other problems requiring proper diagnostics.
In this video, we show a real EBS modulator replacement on a truck: removal of the old unit, inspection of pneumatic and electrical connections, installation of the replacement modulator and final system checks.
The video was filmed during normal workshop work without staging.
What is an EBS modulator?
EBS stands for Electronic Braking System. It is widely used in modern trucks, tractor units, buses, trailers and semi-trailers.
The EBS modulator controls compressed air delivery to the brake chambers according to commands from the electronic control system and input from various sensors.
Common manufacturers include:
- WABCO;
- KNORR-BREMSE;
- HALDEX.
Depending on the system, modulators may be installed on different axles and may have different pneumatic ports, electrical connectors and electronic configurations.
When may an EBS modulator need replacement?
A modulator does not necessarily need to fail completely before problems become noticeable.
Possible symptoms include:
- EBS warning message on the dashboard;
- diagnostic fault codes related to a specific modulator;
- incorrect braking operation on one axle;
- air leakage from the unit or pneumatic connections;
- damaged electrical connector;
- severe corrosion;
- mechanical damage;
- intermittent operation;
- internal electronic or pneumatic failure.
Replacing an EBS modulator based on a fault code alone is not recommended.
The actual problem may be located in the wiring, connectors, sensors, pneumatic system or another related component.
EBS diagnostics before replacement
Before removing the unit, the cause of the fault should be identified whenever possible.
Typical checks include:
- EBS fault codes;
- power supply and ground;
- wiring condition;
- connector contacts;
- moisture or corrosion;
- system air pressure;
- pneumatic line integrity;
- related sensors and components.
This helps prevent unnecessary replacement of a working modulator when the actual fault is elsewhere.

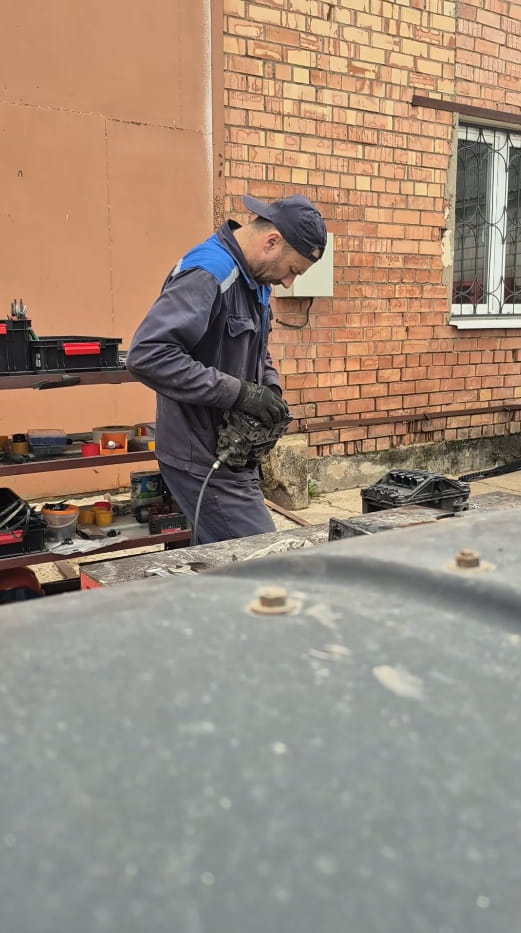

Removing the old EBS modulator
Before removal, the truck and pneumatic system must be placed in a safe condition for service.
The exact procedure depends on the truck and EBS system, but a typical replacement involves:
- accessing the modulator;
- checking the position of pneumatic lines and connectors;
- disconnecting electrical plugs;
- disconnecting pneumatic lines;
- removing the mounting hardware;
- removing the old modulator.
It is useful to record the original position of the pneumatic connections before disconnecting them.
Checking the pneumatic connections
Replacing the modulator is also a good opportunity to inspect the surrounding pneumatic components.
Check the following:
- air lines;
- fittings;
- threaded connections;
- seals;
- contamination inside the ports;
- signs of air leakage.
Even a fully functional EBS modulator cannot operate correctly with leaking or incorrectly connected air lines.
Checking EBS electrical connectors
Wiring and connectors should also be inspected carefully.
Moisture, corrosion, damaged insulation or poor electrical contact can produce faults that may appear to be caused by the modulator itself.
Inspection areas include:
- connector pins;
- connector locking mechanism;
- wiring near the modulator;
- corrosion;
- water contamination;
- physical connector damage.

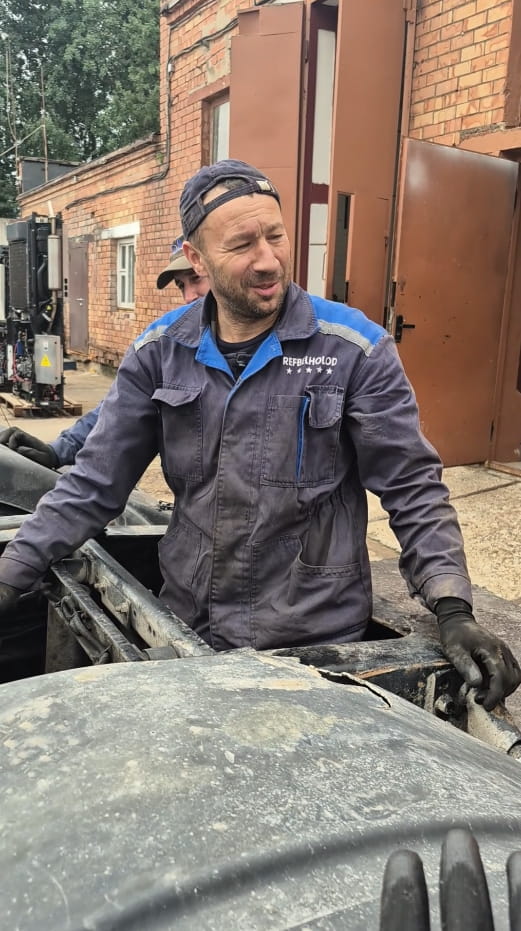

Installing the replacement EBS modulator
Once the old unit has been removed, the replacement modulator can be installed.
The part number and configuration should be verified for compatibility with the specific braking system.
Installation typically includes:
- mounting the modulator in its original position;
- securing the mounting hardware;
- connecting pneumatic lines;
- connecting electrical plugs;
- checking the routing of all air lines;
- confirming that all connections are secured.
An EBS modulator should not be selected based on appearance alone. Similar-looking units may have different part numbers, applications and internal configurations.
What should be checked after installation?
The job is not complete as soon as the replacement modulator is physically installed.
Post-installation checks may include:
- checking pneumatic connections for leaks;
- verifying electrical connections;
- reading and clearing fault codes;
- running another EBS diagnostic scan;
- checking braking system operation;
- making sure no new faults appear.
Depending on the vehicle and EBS system, additional diagnostic procedures may also be required.
New, remanufactured or used original EBS modulator?
Several replacement options are available for commercial vehicles:
- new genuine unit;
- new aftermarket unit;
- remanufactured modulator;
- tested used original unit.
The correct choice depends on the part number, availability, budget and condition of the individual component.
For a used original modulator, the housing, connectors, pneumatic section and overall operation should be checked carefully.
Why is the EBS part number important?
Manufacturers such as WABCO, KNORR and HALDEX produce many modulators that may look very similar externally.
They may differ in:
- part number;
- pneumatic port arrangement;
- connector type;
- application;
- installation axle;
- electronic configuration;
- vehicle compatibility.
For accurate identification, send us a photo of the label and the complete part number from the original modulator.
WABCO, KNORR and HALDEX EBS modulators
Avtovygoda supplies, tests and repairs EBS components for commercial vehicles.
We work with:
- WABCO;
- KNORR-BREMSE;
- HALDEX.
If you need help identifying a replacement unit, send us the part number or a clear photo of the original modulator label.

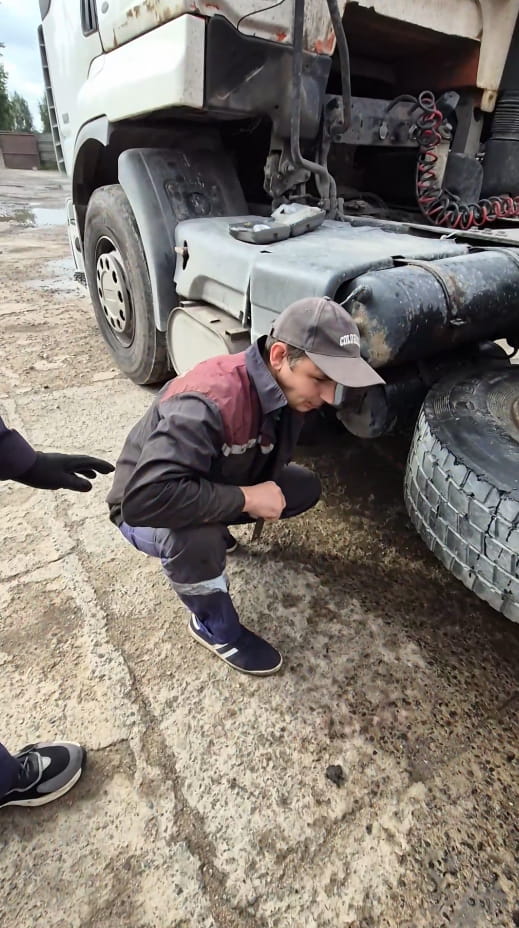

EBS modulator replacement photos
Need an EBS modulator?
For identification, send us the part number, a photo of the label or a clear photo of the old modulator.
